High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting

High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting
High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting

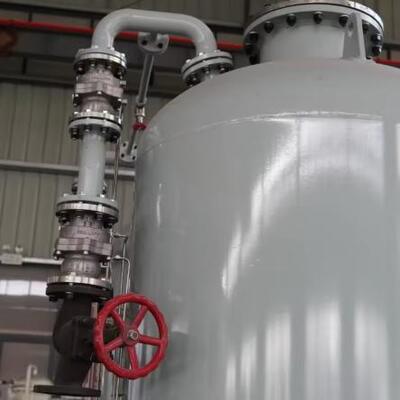

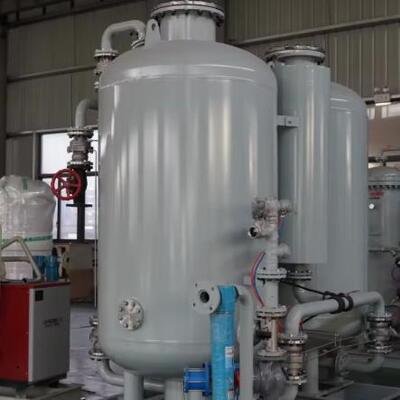

Imagem Grande :  High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting

Detalhes do produto:
Lugar de origem: China
Marca: GNEE
Certificação: SGS
Condições de Pagamento e Envio:
Quantidade de ordem mínima: ≥1 peças
Preço: According to the product
Detalhes da embalagem: Caixa de madeira/embalagem externa/embalagem cilíndrica/embalagem de airbag/embalagem nua/transporte
Termos de pagamento: L/C,D/A,D/P,Western Union,T/T,MoneyGram
Contato

High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting

descrição
Descrição: Gerador de nitrogênio PSA Vida profissional: 12 meses
Alimentação eléctrica: 220V/380V, 50Hz/60Hz Material de aço: Q235b
Mudo: Sim Flowrate: 1 - 1000 Nm³/h
Orvalho pionte: menos de -50 ° C. Operar pressão: 22 bar
Material: Inoxidável, aço carbono Sistema de controle: Controle CLP
Alta pureza: 99.995% Lugar da fabricação: China
Destacar:

High Purity 99.995% PSA Nitrogen Generator

,

PLC Control PSA N2 Plant

,

Compact Cabinet Design Nitrogen Gas Generation Equipment

Laser Cutting Industry Cabinet Nitrogen Generators
Our PSA N2 Plant Nitrogen Gas Generation Equipment represents cutting-edge nitrogen supply technology specifically designed for industrial applications. Utilizing pressure swing adsorption nitrogen generation technology with high-performance carbon molecular sieve (CMS), this system selectively adsorbs oxygen, moisture, and other impurities from atmospheric air to produce high-purity nitrogen on demand.
Key Features
  • Compact cabinet design saves valuable floor space in metal processing workshops
  • Energy-efficient operation reduces consumption by 20-30% compared to traditional methods
  • Produces high-purity nitrogen ranging from 99.9% to 99.999%
  • Prevents oxidation during laser cutting for superior workpiece quality
  • Eliminates risks associated with cylinder transportation and storage
  • Provides continuous, real-time nitrogen supply matching laser cutting demands
Technical Specifications
Nitrogen Production (Nm³/h) Effective Air Consumption (Nm³/min) Inlet Pipe Size (DNmm) Outlet Pipe Diameter (DNmm) Host Dimensions L×W (mm)
5 0.7 25 15 1150×600
10 1.4 25 15 1250×880
20 2.8 40 15 1750×1000
30 4.2 40 25 2150×1100
40 5.6 50 25 2250×1140
50 7.0 50 25 2500×1150
60 8.4 50 25 2750×1450
80 11.2 65 32 2750×1450
100 14.0 65 32 2850×1550
200 28.0 65 32 3250×1820
300 42.0 80 40 3500×2150
High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting 0 High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting 1 High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting 2
Workshop Advantages
The Cabinet Type PSA Nitrogen Generator features an integrated, space-saving design that can be placed directly beside laser cutting machines, reducing pipeline length and pressure loss. This modular approach allows for easy installation and expansion as production capacity increases.
Technology Comparison: PSA vs. VPSA
PSA technology is ideal for medium flow rates (20-100Nm³/h) and medium pressure (0.6-1.2MPa), matching the requirements of most laser cutting machines (1kW-15kW). With fast startup times (5-10 minutes) and stable operation, PSA systems are perfect for intermittent or continuous cutting processes. VPSA technology excels in large flow rates (>100Nm³/h) but requires higher initial investment, making PSA the preferred choice for small-to-medium workshops.
Additional Products & Contact Information
In addition to PSA Nitrogen Generators, we also manufacture VPSA Oxygen Generators, PSA Oxygen Generators, storage tanks, heat exchangers, and other industrial equipment. For more information about our PSA nitrogen systems or other products, please contact us at info@gneeheatex.com or visit our contact page.
