VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use

VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use
VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use

Imagem Grande :  VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use

Detalhes do produto:
Lugar de origem: CHINA
Marca: GNEE
Certificação: SGS
Condições de Pagamento e Envio:
Quantidade de ordem mínima: ≥1 peças
Detalhes da embalagem: Embalagem de caixa de madeira
Tempo de entrega: Tempo de trânsito: EST. 17-24 dias
Termos de pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte: 25 todos os meses
Contato

VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use

descrição
Saída de oxigênio: ≤500Nm3/hr Área coberta: ~600m2
Taxa de fluxo: 100-10000nm3/h Classificação de pressão: Alta pressão
Ponto de orvalho atmosférico: ≤－60 ℃ Doença: Novo
Tempo de partida: 15-30 minutos Material: aço inoxidável
Aplicativo: Produção de oxigénio Taxa de produção: 50 ~ 5000nm3/h
Pureza: 93-95% Pressão de saída: 10-15kap ou requisito do usuário
Destacar:

Low Power Consumption VPSA Oxygen Generator

,

Low Noise VPSA Oxygen Plant

,

Long Service Life Cryogenic Oxygen Generator

VPSA Cryogenic Nitrogen Oxygen Plant - Medical & Industrial Use (Over 95% Purity)
Salient Features
  • Low Power Consumption: Precise equipment parameters with no overload or performance waste. Features high-energy oxygen-producing molecular sieves with low adsorption resistance and optimized adsorption tower design.
  • Low Noise: Large pipe and valve diameters with low gas flow rate. Incorporates combined sound insulation and absorption design.
  • Long Service Life: Components selected from first-line domestic and international brands. Features reliable top tower seal and includes regular maintenance follow-ups.
  • Intelligent Operation: One-click start/stop with unattended operation capability. Includes prompt alarm/emergency stop response and strict self-control logic design.
Product Parameters
Gas Production (Nm³/h) Air Consumption (Nm³/min) Imported Nominal Diameter DN (mm) Host Dimensions L*W*H (mm)
10.2DN15800 * 650 * 1720
20.4DN15950 * 950 * 1500
30.6DN151050 * 900 * 1865
51DN201450 * 900 * 1825
102DN321450 * 900 * 1825
153DN401800 * 950 * 1940
204DN401850 * 1025 * 2100
255DN502000 * 1050 * 2210
306DN502000 * 1050 * 2530
5010DN652200 * 1250 * 2720
6012DN652250 * 1300 * 2850
8016DN802350 * 1550 * 3060
10020DN1002500 * 1600 * 3330
12024DN1002600 * 1700 * 3670
15030DN1504700 * 1500 * 2980
18036DN2004700 * 1600 * 3370
20040DN2005000 * 1600 * 3330
24048DN2005200 * 1700 * 3670
VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use 0 VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use 1 VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use 2
Installation Solution

The oxygen plant system includes:

  • Screw type air compressor
  • Oxygen booster
  • Air buffer tank
  • Refrigerated dryer
  • Filtration equipment
  • Oxygen buffer tank
  • Oxygen generator
  • Oxygen regulator
  • Filling manifold
Installation Steps

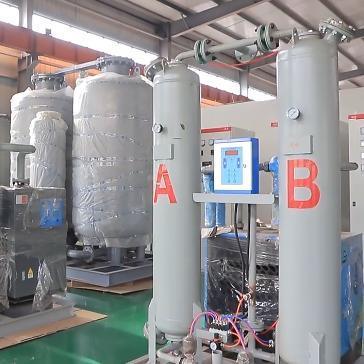

  1. Connect A&B from the air compressor flange to the refrigerated dryer flange using black DN50 high pressure tube
  2. Connect C&D from the oxygen generator to the oxygen booster using black DN50 high pressure tube
  3. Connect F from the oxygen booster to the filling manifold using black DN50 high pressure tube
  4. Connect the filling manifold to oxygen cylinders
Installation Notes
  • Ensure sealed connections between all equipment
  • Tighten all gaskets and screws properly
  • Prevent any air leakage
Packaging Details
Size123 (L) * 456 (W) * 789 (D)
Weight1.2 T
PackagingStandard wooden box packaging. For European exports, fumigated wooden boxes are used. Alternative packaging (PE film) available for tight container spaces or special customer requests.
We also manufacture PSA Oxygen Generators, storage tanks, heat exchangers and related products. For inquiries about VPSA Oxygen Systems or other products, please email info@gneeheatex.com. Our team will be pleased to assist you.
