VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity

VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity
VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity

Imagem Grande :  VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity

Detalhes do produto:
Lugar de origem: China
Marca: GNEE
Certificação: SGS
Condições de Pagamento e Envio:
Quantidade de ordem mínima: ≥1 peças
Preço: depend on product
Detalhes da embalagem: Requst/personalização do cliente
Termos de pagamento: MoneyGram, Western Union, T/T, D/P, D/A, L/C.
Contato

VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity

descrição
Produto: Gerador do oxigênio de VPSA Vida útil: 8-10 anos
Material: aço inoxidável Freqüência: 50Hz/60Hz
Sistema de controle: Plc Pressão de saída: 10-15kap ou requisito do usuário
Peso: Dependa da capacidade Garantia: 1 ano
Processo: VPSA Temperatura: Ambiental
Saída de oxigênio: ≤500Nm3/hr Ponto de orvalho: -40 ℃
Pureza: 90-95%
Destacar:

VPSA oxygen generator 50-80Nm3/hr

,

VPSA oxygen generator 90-95% purity

,

industrial VPSA oxygen generator

50nm3 80nm3 VPSA Oxygen Generator Oxygen Plant
Product Overview
The VPSA process is similar to PSA. Our VPSA oxygen generator uses an air blower to supply compressed air into an adsorption tower, operating with adsorption at low pressure and desorption under vacuum conditions. Under atmospheric or slightly above atmospheric pressure, a mixed bed composed of VPSA special molecular sieve and dryer absorbs N₂, CO₂, H₂O and other impurities, allowing oxygen to accumulate and be collected at the end of the bed. The saturated molecular sieve bed is then desorbed under vacuum, enabling continuous production of high-purity oxygen (90-95%).
Compared with PSA process, VPSA has more complex process equipment and higher initial investment but offers lower power consumption, making it ideal for large-scale oxygen production.
Technical Features
  • Fully automatic control system
  • Low energy consumption and production cost
  • Simple process with minimal equipment
  • Quick starting and easy stopping
  • Ideal for medium and large-scale oxygen production
  • Low working pressure for enhanced safety
  • Long service life with minimal maintenance
Product Specifications
Capacity (L/h) Power (Kw) Oxygen Gas Capacity Required (Nm³/h) Purity Oxygen Gas Pressure Required (Mpa) Power (AC/V)
3 13.5 4 99.9% or as required 0.8 220
5 14.5 6 99.9% or as required 0.8 380
10 27.5 12 99.9% or as required 1.0 380
20 54.5 30 99.9% or as required 1.0 380
30 65 40 99.9% or as required 1.6 380
40 81 50 99.9% or as required 1.0 380
50 99.5 60 99.9% or as required 1.6 380

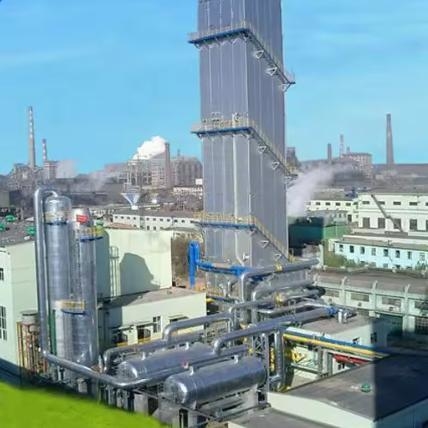

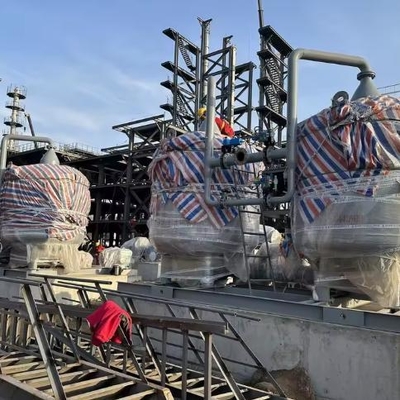

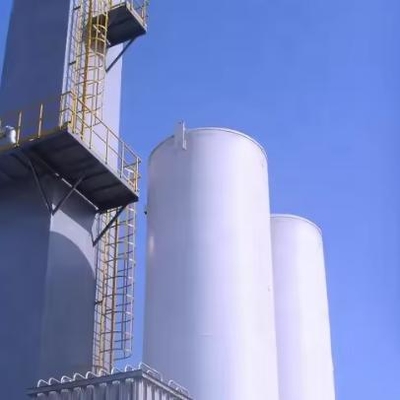

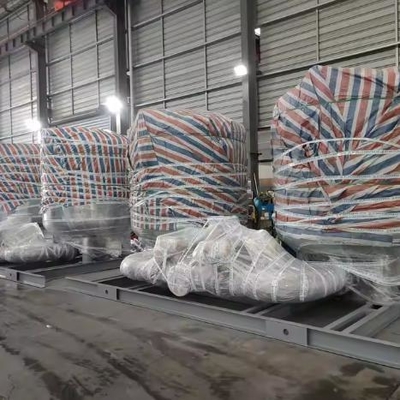

VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity 0 VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity 1 VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity 2 VPSA Oxygen Generator 50-80Nm3/hr 90-95% Purity 3
Process Description
Our Vacuum Pressure Swing Adsorption oxygen production system operates at normal temperature conditions, utilizing molecular sieve technology to selectively adsorb nitrogen from air. The adsorption tower pressure is reduced to desorb nitrogen from the molecular sieve, enabling continuous adsorption-desorption cycle operation for production of oxygen with purity levels of 80-95% or higher.
  1. Filtered air is blown into adsorption towers containing molecular sieve and activated alumina. Nitrogen molecules are absorbed while oxygen and argon pass through to the buffer tank.
  2. When a tower reaches saturation, the inlet valve closes and oxygen-rich air washes the other tower. A vacuum pump removes nitrogen from the saturated tower.
  3. After vacuuming, oxygen-rich air and buffer tank gas wash the molecular sieve to desorb nitrogen. The tower is then filled with product gas, ready for the next adsorption cycle.
Our Advantages
Pre-sale Services:
  • Professional technical support available 24/7
  • Custom compressor solutions based on your specifications
After-sales Services:
  • Comprehensive testing before shipping
  • Free online installation and launching instructions
  • Customizable language support
In addition to VPSA Oxygen Generators, we also produce PSA Oxygen Generators, storage tanks, heat exchangers and related equipment. For inquiries about our VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com. We look forward to serving you.
