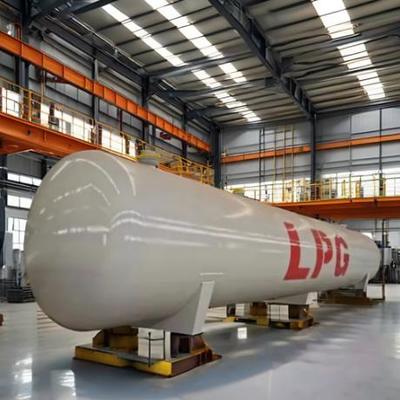

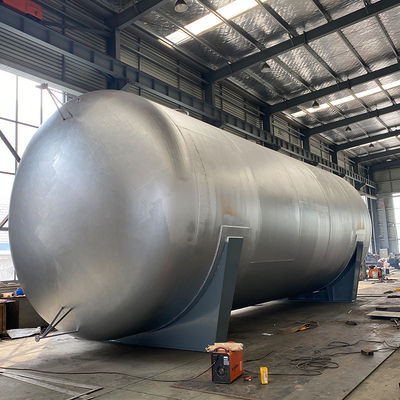

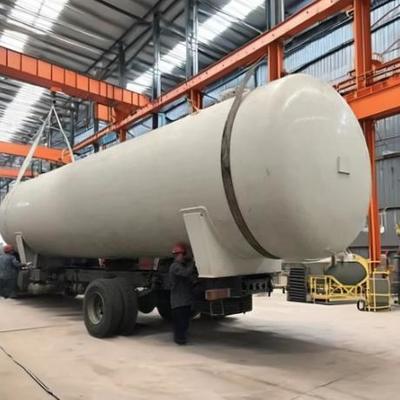

30,000 m³ LPG Storage Tank with Cryogenic Valve 304 Stainless Steel

30,000 m³ LPG Storage Tank with Cryogenic Valve 304 Stainless Steel
30,000 m³ LPG Storage Tank with Cryogenic Valve 304 Stainless Steel 30,000 m³ LPG Storage Tank with Cryogenic Valve 304 Stainless Steel 30,000 m³ LPG Storage Tank with Cryogenic Valve 304 Stainless Steel 30,000 m³ LPG Storage Tank with Cryogenic Valve 304 Stainless Steel

Imagem Grande :  30,000 m³ LPG Storage Tank with Cryogenic Valve 304 Stainless Steel

Detalhes do produto:
Place of Origin: CHINA
Marca: GNEE
Certificação: SGS
Condições de Pagamento e Envio:
Minimum Order Quantity: 1
Preço: depends on the product
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: Annual Production 30,000 tons
Contato

30,000 m³ LPG Storage Tank with Cryogenic Valve 304 Stainless Steel

descrição
Valve Type: Cryogenic Valve Inner Vessel Material: 304 Stainless Steel
Inner Vessel Type: Double Wall Empty Weight: Cylindrical
Pressure: 0.8Mpa Inner Material: stainless steel
Max Working Pressure: 2.16mpa Pressure Range: 1.5 bar to 30 bar
Destacar:

30

,

000 m³ LPG storage tank

,

cryogenic storage tank with valve

100,000 M³ To 30,000 M³ LPG Storage Tank for Fuel Storage
Product Specifications
Attribute Value
Valve Type Cryogenic Valve
Inner Vessel Material 304 Stainless Steel
Inner Vessel Type Double Wall
Empty Weight Cylindrical
Pressure 0.8Mpa
Inner Material Stainless Steel
Max Working Pressure 2.16mpa
Pressure Range 1.5 bar to 30 bar
Product Overview

Liquefied petroleum gas storage tanks are available as compressed gas or liquefied gas storage tanks. These tanks can be categorized into:

  • Fixed volume storage tanks - Large spherical or small cylindrical designs
  • Active volume storage tanks (low-pressure gas storage tanks) - Feature variable geometric volume with pressure typically not exceeding 60MPa
Technical Parameters
Model (m³) Design Pressure (MPa) Cylinder Size (mm) Dimensions (mm) Material Net Weight (Kg)
5 1.77MPa DN1200*4000*10 1800*1800*6000 Q345R 3200kg
10 1.77MPa DN1200*4400*10 2000*2000*6000 Q345R 3500kg
15 1.77MPa DN1600*5250*12 2300*2000*7000 Q345R 5200kg
20 1.77MPa DN1800*5800*12 2500*2000*1000 Q345R 3800kg
25 1.77MPa DN2200*7100*12 2600*2200*1200 Q345R 7000kg
30 1.77MPa DN2000*5500*12 2450*2000*7500 Q345R 7500kg
General Specifications
  • Material: Carbon Steel, Stainless Steel
  • Design Pressure: 1.65MPa
  • Working Pressure: 1.4MPa
  • Working Temperature: 0-204℃
  • Capacity: Customized
30,000 m³ LPG Storage Tank with Cryogenic Valve 304 Stainless Steel 0 30,000 m³ LPG Storage Tank with Cryogenic Valve 304 Stainless Steel 1 30,000 m³ LPG Storage Tank with Cryogenic Valve 304 Stainless Steel 2
Why Choose Our LPG Storage Tanks?
  • Premium Materials: First-grade steel with superior corrosion, temperature, and pressure resistance
  • Advanced Welding: Fully automated equipment producing smooth, durable seams
  • Superior Finishing: Wear-resistant paint with excellent corrosion protection
  • Large-Scale Capability: 50-meter heat treatment furnace for oversized vessels
  • Rigorous Testing: Comprehensive quality checks including material testing, NDT, and hydrostatic testing
Key Advantages
  • Simple linear structure for easy installation and maintenance
  • User-friendly design with straightforward operation
  • Centralized control system for enhanced safety
  • Minimal daily evaporation rate reducing product loss
Our Commitment
  • 24-hour response to all inquiries
  • Dedicated global customer service
  • Expertise in Q345R alloy steel pressure vessels
  • Custom design and manufacturing capabilities
Contact Our Experts

For more information about our LPG storage solutions, please email us at info@gneeheatex.com. Our team is ready to assist with your specific requirements.
